STM8AF6266TAX IC MCU 8BIT 32KB FLASH 32LQFP Microcontroller IC

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

STM8AF6266TAX IC MCU 8BIT 32KB FLASH 32LQFP Microcontroller IC

Brand Name : original

Model Number : STM8AF6266TAX

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Digi-Key Programmable : Not Verified

Core Processor : STM8A

Core Size : 8-Bit

Speed : 16MHz

Connectivity : I²C, LINbus, SPI, UART/USART

Peripherals : Brown-out Detect/Reset, POR, PWM, WDT

Program Memory Size : 25

Digi-Key Programmable Not Verified Core Processor STM8A Core Size 8-Bit Speed 16MHz Connectivity I²C : 32KB (32K x 8)

Contact Now

STM8AF6266TAX Emmc Memory Chip Ic Mcu 8bit 32kb Flash 32lqfp
STM8A STM8A Microcontroller IC 8-Bit 16MHz 32KB (32K x 8) FLASH 32-LQFP (7x7)

Specifications of STM8AF6266TAX

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Embedded
Microcontrollers
Mfr STMicroelectronics
Series STM8A
Package Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status Not For New Designs
Digi-Key Programmable Not Verified
Core Processor STM8A
Core Size 8-Bit
Speed 16MHz
Connectivity I²C, LINbus, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 25
Program Memory Size 32KB (32K x 8)
Program Memory Type FLASH
EEPROM Size 1K x 8
RAM Size 2K x 8
Voltage - Supply (Vcc/Vdd) 3V ~ 5.5V
Data Converters A/D 7x10b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 32-LQFP
Supplier Device Package 32-LQFP (7x7)
Base Product Number STM8

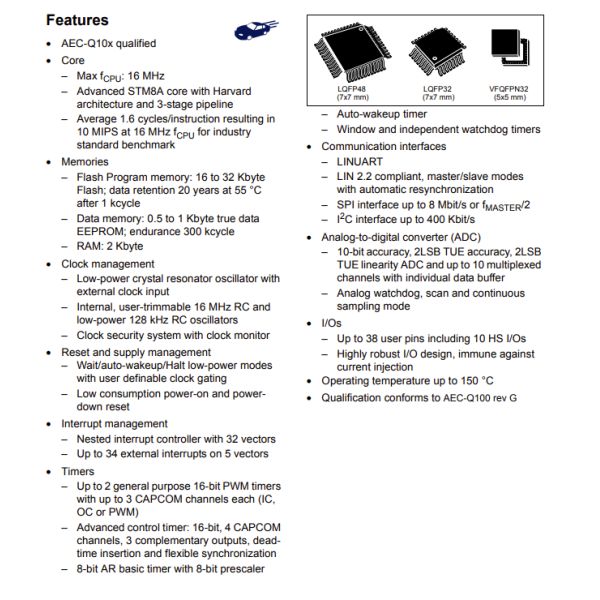

Features of STM8AF6266TAX

• AEC-Q10x qualified
• Core
– Max fCPU: 16 MHz
– Advanced STM8A core with Harvard architecture and 3-stage pipeline
– Average 1.6 cycles/instruction resulting in 10 MIPS at 16 MHz fCPU for industry standard benchmark
• Memories
– Flash Program memory: 16 to 32 Kbyte Flash; data retention 20 years at 55 °C after 1 kcycle
– Data memory: 0.5 to 1 Kbyte true data EEPROM; endurance 300 kcycle
– RAM: 2 Kbyte
• Clock management
– Low-power crystal resonator oscillator with external clock input
– Internal, user-trimmable 16 MHz RC and low-power 128 kHz RC oscillators
– Clock security system with clock monitor
• Reset and supply management
– Wait/auto-wakeup/Halt low-power modes with user definable clock gating
– Low consumption power-on and powerdown reset
• Interrupt management
– Nested interrupt controller with 32 vectors
– Up to 34 external interrupts on 5 vectors
• Timers
– Up to 2 general purpose 16-bit PWM timers with up to 3 CAPCOM channels each (IC, OC or PWM)
– Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, deadtime insertion and flexible synchronization
– 8-bit AR basic timer with 8-bit prescaler

Applications of STM8AF6266TAX

• 80 instructions with 2-byte average instruction size
• Standard data movement and logic/arithmetic functions
• 8-bit by 8-bit multiplication
• 16-bit by 8-bit and 16-bit by 16-bit division
• Bit manipulation
• Data transfer between stack and accumulator (push/pop) with direct stack access
• Data transfer using the X and Y registers or direct memory-to-memorytransfers

Environmental & Export Classifications of STM8AF6266TAX

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
