LM94022BIMGX/NOPB Temperature Sensor Chip -50C-150C SC70-5 5.5 ~ 13.6mV/°C

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

LM94022BIMGX/NOPB Temperature Sensor Chip -50C-150C SC70-5 5.5 ~ 13.6mV/°C

Brand Name : original

Model Number : LM94022BIMGX/NOPB

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Sensing Temperature - Local : -50°C ~ 150°C

Voltage - Supply : 1.5V ~ 5.5V

Resolution : 5.5 ~ 13.6mV/°C

Accuracy - Highest (Lowest) : ±1.5°C (±2.7°C)

Test Condition : 20°C ~ 40°C (0°C ~ 150°C)

Operating Temperature : -50°C ~ 150°C

Supplier Device Package : SC-70-5

Mounting Type : Surface Mount

Contact Now

LM94022BIMGX/NOPB Temperature Sensor Chip -50C-150C SC70-5 5.5 ~ 13.6mV/°C


Temperature Sensor Analog, Local -50°C ~ 150°C 5.5 ~ 13.6mV/°C SC-70-5

Specifications of LM94022BIMGX/NOPB

TYPE DESCRIPTION
Category Sensors, Transducers
Temperature Sensors
Analog and Digital Output
Mfr Texas Instruments
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
Product Status Active
Sensor Type Analog, Local
Sensing Temperature - Local -50°C ~ 150°C
Sensing Temperature - Remote -
Output Type Analog Voltage
Voltage - Supply 1.5V ~ 5.5V
Resolution 5.5 ~ 13.6mV/°C
Features Programmable Resolution
Accuracy - Highest (Lowest) ±1.5°C (±2.7°C)
Test Condition 20°C ~ 40°C (0°C ~ 150°C)
Operating Temperature -50°C ~ 150°C
Mounting Type Surface Mount
Package / Case 5-TSSOP, SC-70-5, SOT-353
Supplier Device Package SC-70-5
Base Product Number LM94022


Features of LM94022BIMGX/NOPB

• LM94022/-Q1 is AEC-Q100 Grade 0 qualified and is Manufactured on an Automotive Grade Flow
• Low 1.5-V to 5.5-V Operation With Low 5.4-µA Supply Current
• Push-Pull Output With ±50-µA Source Current Capability
• Four Selectable Gains
• Very Accurate Over Wide Temperature Range of −50°C to +150°C:
– ±1.5ºC Temperature Accuracy for 20ºC to 40ºC Range
– ±1.8ºC Temperature Accuracy for –50ºC to 70ºC Range
– ±2.1ºC Temperature Accuracy for –50ºC to 90ºC Range
– ±2.7ºC Temperature Accuracy for –50ºC to 150ºC Range
• Output is Short-Circuit Protected
• Extremely Small SC70 Package
• For the Similar Functionality in a TO-92 Package, See LMT84, LMT85, LMT86, or LMT87
• Footprint Compatible With the Industry-Standard LM20 Temperature Sensor

Applications of LM94022BIMGX/NOPB

• Automotive
• Cell Phones
• Wireless Transceivers
• Battery Management
• Disk Drives
• Games
• Appliances


Environmental & Export Classifications of LM94022BIMGX/NOPB

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99


LM94022BIMGX/NOPB Temperature Sensor Chip -50C-150C SC70-5 5.5 ~ 13.6mV/°C


Quality LM94022BIMGX/NOPB Temperature Sensor Chip -50C-150C SC70-5 5.5 ~ 13.6mV/°C for sale

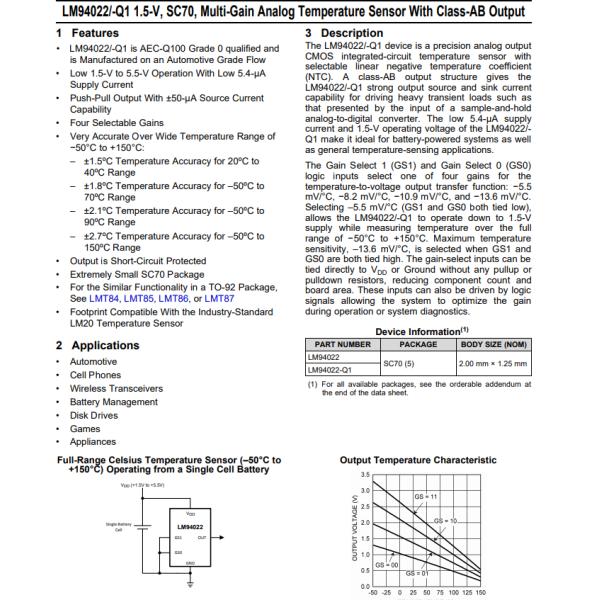

LM94022BIMGX/NOPB Temperature Sensor Chip -50C-150C SC70-5 5.5 ~ 13.6mV/°C Images
