LMV981MFX/NOPB General Purpose Amplifier With 1 Circuit Rail - To - Rail SOT-23-6

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

LMV981MFX/NOPB General Purpose Amplifier With 1 Circuit Rail - To - Rail SOT-23-6

Brand Name : original

Model Number : LMV981MFX/NOPB

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Amplifier Type : General Purpose

Number of Circuits : 1

Output Type : Rail-to-Rail

Slew Rate : 0.42V/µs

Gain Bandwidth Product : 1.5 MHz

Current - Input Bias : 14 nA

Voltage - Input Offset : 1 mV

Current - Supply : 116µA

Current - Output / Channel : 100 mA

Voltage - Supply Span (Min) : 1.8 V

Contact Now

LMV981MFX/NOPB General Purpose Amplifier With 1 Circuit Rail-to-Rail SOT-23-6

IC OPAMP GP 1 CIRCUIT SOT23-6

Specifications of LMV981MFX/NOPB

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Instrumentation, OP Amps, Buffer Amps
Mfr Texas Instruments
Series -
Package Tape & Reel (TR)
Product Status Active
Amplifier Type General Purpose
Number of Circuits 1
Output Type Rail-to-Rail
Slew Rate 0.42V/µs
Gain Bandwidth Product 1.5 MHz
Current - Input Bias 14 nA
Voltage - Input Offset 1 mV
Current - Supply 116µA
Current - Output / Channel 100 mA
Voltage - Supply Span (Min) 1.8 V
Voltage - Supply Span (Max) 5 V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case SOT-23-6
Supplier Device Package SOT-23-6
Base Product Number LMV981


Features of LMV981MFX/NOPB


• Ensured 1.8-V, 2.7-V, and 5-V Specifications
• Output Swing:
– 600-Ω Load: 80-mV from Rail
– 2-kΩ Load: 30-mV from Rail
• VCM 200 mV Beyond Rails
• Supply Current (Per Channel): 100 µA
• Gain Bandwidth Product: 1.4 MHz
• Maximum VOS: 4 mV
• Gain with 600-Ω Load: 101 dB
• Ultra-Small Package: DSBGA 1.0 mm × 1.5 mm
• Turnon Time from Shutdown: 19 µs
• Independent Shutdown on Dual
• Temperature Range: −40°C to 125°C

Applications of LMV981MFX/NOPB


• Industrial and Automotive
• Consumer Communication
• Fitness Trackers
• Wearables
• Mobile Phones
• Portable Audio
• Portable and Battery-Powered Electronic Equipment
• Supply Current Monitoring
• Battery Monitoring

Environmental & Export Classifications of LMV981MFX/NOPB

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001

LMV981MFX/NOPB General Purpose Amplifier With 1 Circuit Rail - To - Rail SOT-23-6



Product Tags:

LMV981MFX/NOPB General Purpose Amplifier



SOT-23-6 General Purpose Amplifier


Quality LMV981MFX/NOPB General Purpose Amplifier With 1 Circuit Rail - To - Rail SOT-23-6 for sale

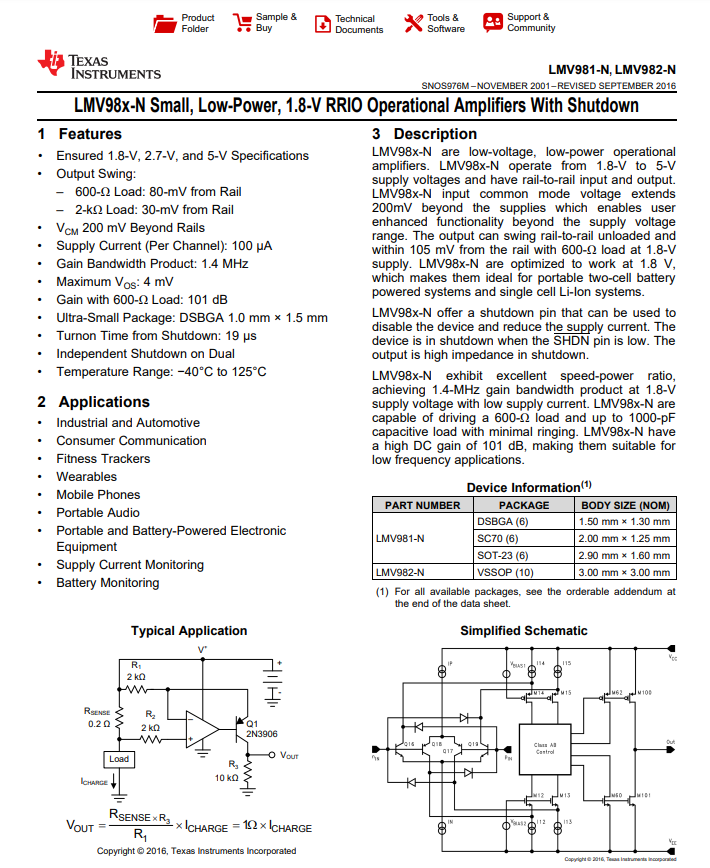

LMV981MFX/NOPB General Purpose Amplifier With 1 Circuit Rail - To - Rail SOT-23-6 Images
