LT3757IDD#TRPBF DC DC Switching Controller IC Boost SEPIC Regulator Positive And Negative

SZ ADE Electronics Co., Ltd
Contact Now

LT3757IDD#TRPBF DC DC Switching Controller IC Boost SEPIC Regulator Positive And Negative

Brand Name : original

Model Number : LT3757IDD#TRPBF

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 1000

Delivery Time : 3-5ddays

Packaging Details : carton box

Number of Outputs : 1

Output Phases : 1

Voltage - Supply (Vcc/Vdd) : 2.9V ~ 40V

Frequency - Switching : 100kHz ~ 1MHz

Clock Sync : Yes

Control Features : Enable, Frequency Control, Soft Start

Synchronous Rectifier : No

Operating Temperature : -40°C ~ 125°C (TJ)

Contact Now

LT3757IDD#TRPBF Boost SEPIC Regulator Positive and Negative DC-DC Controller


Specifications of LT3757IDD#TRPBF

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Power Management (PMIC)
DC DC Switching Controllers
Mfr Analog Devices Inc.
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
Product Status Active
Output Type Transistor Driver
Function Step-Up, Step-Up/Step-Down
Output Configuration Positive and Negative
Topology Boost, Flyback, SEPIC
Number of Outputs 1
Output Phases 1
Voltage - Supply (Vcc/Vdd) 2.9V ~ 40V
Frequency - Switching 100kHz ~ 1MHz
Duty Cycle (Max) -
Synchronous Rectifier No
Clock Sync Yes
Serial Interfaces -
Control Features Enable, Frequency Control, Soft Start
Operating Temperature -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 10-WFDFN Exposed Pad
Supplier Device Package 10-DFN (3x3)
Base Product Number LT3757

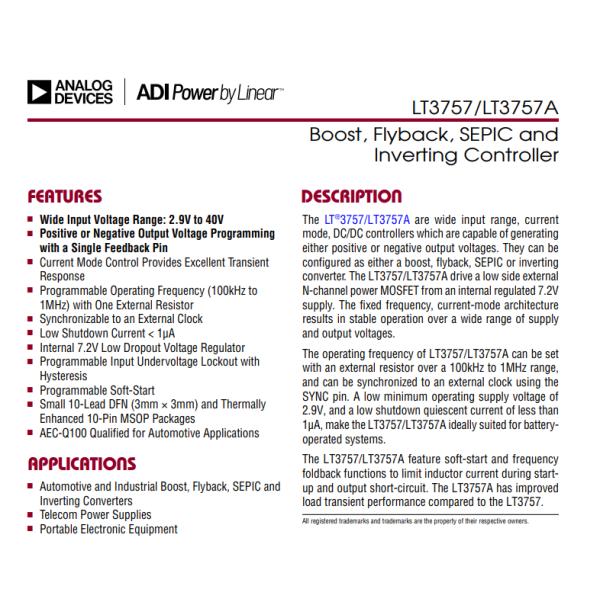

Features of LT3757IDD#TRPBF


* Wide Input Voltage Range: 2.9V to 40V
* Positive or Negative Output Voltage Programming with a Single Feedback Pin
* Current Mode Control Provides Excellent Transient Response
* Programmable Operating Frequency (100kHz to 1MHz) with One External Resistor
* Synchronizable to an External Clock
* Low Shutdown Current < 1µA
* Internal 7.2V Low Dropout Voltage Regulator
* Programmable Input Undervoltage Lockout with Hysteresis
* Programmable Soft-Start
* Small 10-Lead DFN (3mm × 3mm) and Thermally Enhanced 10-Pin MSOP Packages
* AEC-Q100 Qualified for Automotive Applications

Applications of LT3757IDD#TRPBF


* Automotive and Industrial Boost, Flyback, SEPIC and Inverting Converters
* Telecom Power Supplies
* Portable Electronic Equipment


Environmental & Export Classifications of LT3757IDD#TRPBF

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001


LT3757IDD#TRPBF DC DC Switching Controller IC Boost SEPIC Regulator Positive And Negative
