TPA2010D1YZFT Linear Integrated Circuits Amplifier IC 1-Channel Class D 9-DSBGA

Name: TPA2010D1YZFT Linear Integrated Circuits Amplifier IC 1Channel Class D 9DSBGA
Brand: original
Price: 1 USD

Brand Name : original

Model Number : TPA2010D1YZFT

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 1000

Delivery Time : 3-5ddays

Packaging Details : carton box

Type : Class D

Output Type : 1-Channel (Mono)

Max Output Power x Channels @ Load : 2.5W x 1 @ 4Ohm

Voltage - Supply : 2.5V ~ 5.5V

Features : Depop, Differential Inputs, Shutdown, Thermal Protection

Operating Temperature : -40°C ~ 85°C (TA)

Supplier Device Package : 9-DSBGA

Contact Now

TPA2010D1YZFT Linear Integrated Circuits Amplifier IC 1-Channel Class D 9-DSBGA

Specifications of TPA2010D1YZFT

TYPE	DESCRIPTION
Category	Integrated Circuits (ICs)
	Linear
	Amplifiers
	Audio Amplifiers
Mfr	Texas Instruments
Series	NanoFree™
Package	Tape & Reel (TR)
	Cut Tape (CT)
Product Status	Active
Type	Class D
Output Type	1-Channel (Mono)
Max Output Power x Channels @ Load	2.5W x 1 @ 4Ohm
Voltage - Supply	2.5V ~ 5.5V
Features	Depop, Differential Inputs, Shutdown, Thermal Protection
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C (TA)
Supplier Device Package	9-DSBGA
Package / Case	9-UFBGA, DSBGA
Base Product Number	TPA2010

Features of TPA2010D1YZFT

* Maximum Battery Life and Minimum Heat
- Efficiency with an 8-Q Speaker:
- 88% at 400 mW
- 80% at 100 mWl
- 2.8-mA Quiescent Current
- 0.5-A Shutdown Current
* Only Three External Components
- Optimized PWM Output Stage Eliminates L(Output Filter
- Internally Generated 250-kHz SwitchingFrequency Eliminates Capacitor and Resistc
- lmproved PSRR (-75 dB) and Wide SupplyVoltage (2.5 V to 5.5 V) Eliminates Need forVoltage Regulator
- Fully Differential Design Reduces RFRectification and Eliminates Bypass Capacit
- lmproved CMRR Eliminates Two InputCoupling Capacitors
* Die-size ball grid (DSBGA)
- NanoFreeTm Lead-Free (YZF)
- NanoStarm SnPb (YEF)

Applications of TPA2010D1YZFT

* Wireless or Cellular Handsets and PDAs
* Personal Navigation Devices
* General Portable Audio Devices
* Linear Vibrator Drivers

Environmental & Export Classifications of TPA2010D1YZFT

ATTRIBUTE	DESCRIPTION
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.33.0001

TPA2010D1YZFT Linear Integrated Circuits Amplifier IC 1-Channel Class D 9-DSBGA

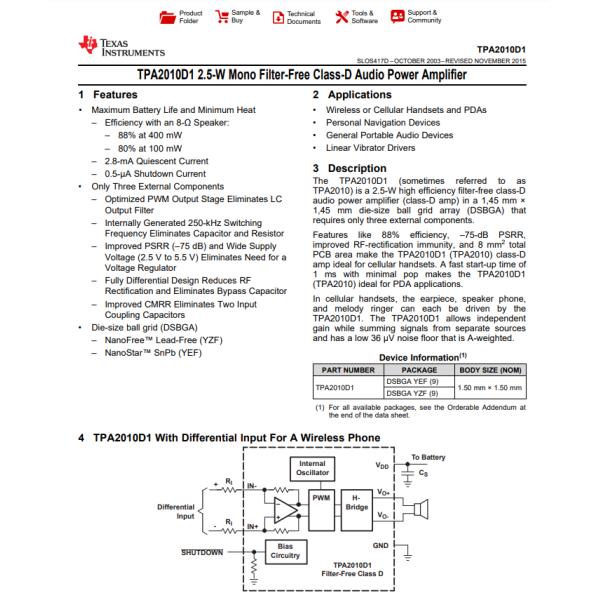

TPA2010D1YZFT Linear Integrated Circuits Amplifier IC 1-Channel Class D 9-DSBGA Images
