NCP145AMX120TCG Linear Voltage Regulator IC 1 Output 500mA 4-XDFN (1.2x1.2)

Brand Name : original

Model Number : NCP145AMX120TCG

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 5.5V

Voltage - Output (Min/Fixed) : 1.2V

Voltage Dropout (Max) : 0.25V @ 500mA

Current - Output : 500mA

Current - Supply (Max) : 110 µA

PSRR : 70dB (1kHz)

Contact Now

NCP145AMX120TCG Linear Voltage Regulator IC 1 Output 500mA 4-XDFN (1.2x1.2)

Specifications of NCP145AMX120TCG

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear
Mfr onsemi
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 1.2V
Voltage - Output (Max) -
Voltage Dropout (Max) 0.25V @ 500mA
Current - Output 500mA
Current - Supply (Max) 110 µA
PSRR 70dB (1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature
Operating Temperature -40°C ~ 85°C (TJ)
Mounting Type Surface Mount
Package / Case 4-XDFN Exposed Pad
Supplier Device Package 4-XDFN (1.2x1.2)
Base Product Number NCP145


Features of NCP145AMX120TCG


• Input Voltage Range: 1.0 V to 5.5 V
• Bias Voltage Range: 2.4 V to 5.5 V
• Fixed Voltage Versions Available
• Output Voltage Range: 1.0 V to 1.8 V (Fixed)
• ±1.5% Accuracy over Temperature, 0.5% VOUT @ 25°C
• Ultra−Low Dropout: Typ. 140 mV at 500 mA
• Very Low Bias Input Current of Typ. 80 A
• Very Low Bias Input Current in Disable Mode: Typ. 0.5 A
• Logic Level Enable Input for ON/OFF Control
• Output Active Discharge Option Available
• Stable with a 2.2 F Ceramic Capacitor
• Available in XDFN4 − 1.2 mm x 1.2 mm x 0.4 mm Package
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Applications of NCP145AMX120TCG


• Battery−powered Equipment
• Smartphones, Tablets
• Cameras, DVRs, STB and Camcorders



Environmental & Export Classifications of NCP145AMX120TCG

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001


NCP145AMX120TCG Linear Voltage Regulator IC 1 Output 500mA 4-XDFN (1.2x1.2)


Quality NCP145AMX120TCG Linear Voltage Regulator IC 1 Output 500mA 4-XDFN (1.2x1.2) for sale

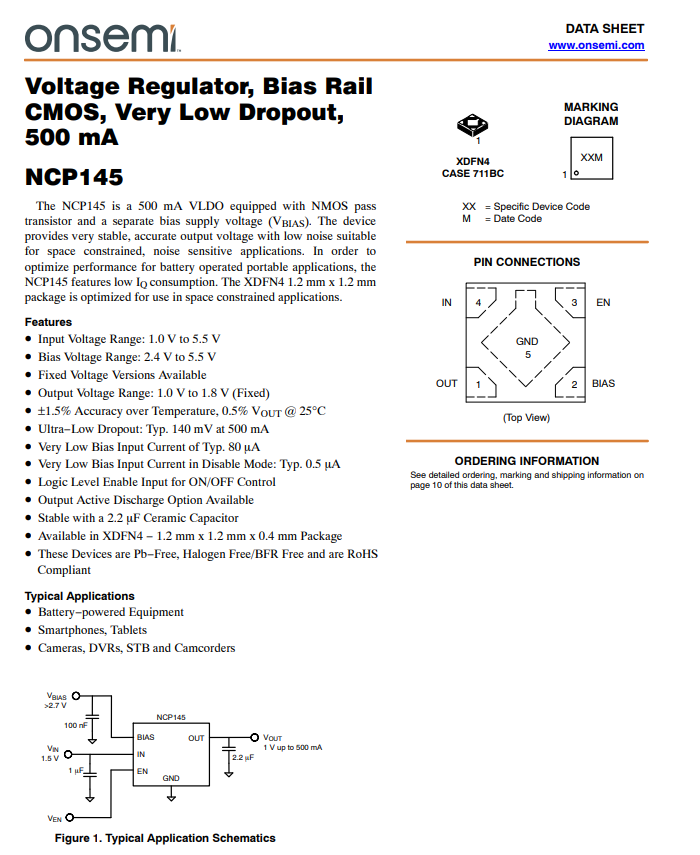

NCP145AMX120TCG Linear Voltage Regulator IC 1 Output 500mA 4-XDFN (1.2x1.2) Images
