LT1761IS5-3.3#TRMPBF Linear Voltage Regulator IC Positive Fixed 1 Output 100mA

Brand Name : original

Model Number : LT1761IS5-3.3#TRMPBF

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 20V

Voltage - Output (Min/Fixed) : 3.3V

Voltage Dropout (Max) : 0.45V @ 100mA

Current - Output : 100mA

PSRR : 65dB (120Hz)

Protection Features : Over Current, Over Temperature, Reverse Polarity

Contact Now

LT1761IS5-3.3#TRMPBF Linear Voltage Regulator IC Positive Fixed 1 Output 100mA

Specifications of LT1761IS5-3.3#TRMPBF

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear
Mfr Analog Devices Inc.
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 20V
Voltage - Output (Min/Fixed) 3.3V
Voltage - Output (Max) -
Voltage Dropout (Max) 0.45V @ 100mA
Current - Output 100mA
PSRR 65dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature, Reverse Polarity
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case SOT-23-5 Thin, TSOT-23-5
Supplier Device Package TSOT-23-5
Base Product Number LT1761


Features of LT1761IS5-3.3#TRMPBF


* Low Noise: 20μVRMS (10Hz to 100kHz)
* Low Quiescent Current: 20μA
* Wide Input Voltage Range: 1.8V to 20V
* Output Current: 100mA
* Very Low Shutdown Current: <0.1μA
* Low Dropout Voltage: 300mV at 100mA
* Fixed Output Voltages: 1.2V, 1.5V, 1.8V, 2V, 2.5V,2.8V, 3V, 3.3V, 5V
* Adjustable Output from 1.22V to 20V
* Stable with 1μF Output Capacitor
* Stable with Aluminum, Tantalum or Ceramic Capacitors
* Reverse-Battery Protected
* No Reverse Current
* No Protection Diodes Needed
* Overcurrent and Overtemperature Protected
* Available in Tiny 5-Lead TSOT-23 Package


Descriptions of LT1761IS5-3.3#TRMPBF


* Cellular Phones
* Pagers
* Battery-Powered Systems
* Frequency Synthesizers
* Wireless Modems


Environmental & Export Classifications of LT1761IS5-3.3#TRMPBF

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001


LT1761IS5-3.3#TRMPBF Linear Voltage Regulator IC Positive Fixed 1 Output 100mA


Quality LT1761IS5-3.3#TRMPBF Linear Voltage Regulator IC Positive Fixed 1 Output 100mA for sale

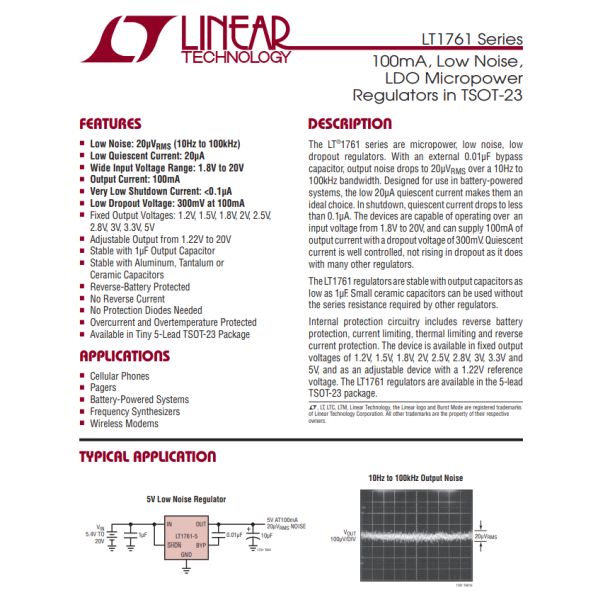

LT1761IS5-3.3#TRMPBF Linear Voltage Regulator IC Positive Fixed 1 Output 100mA Images
